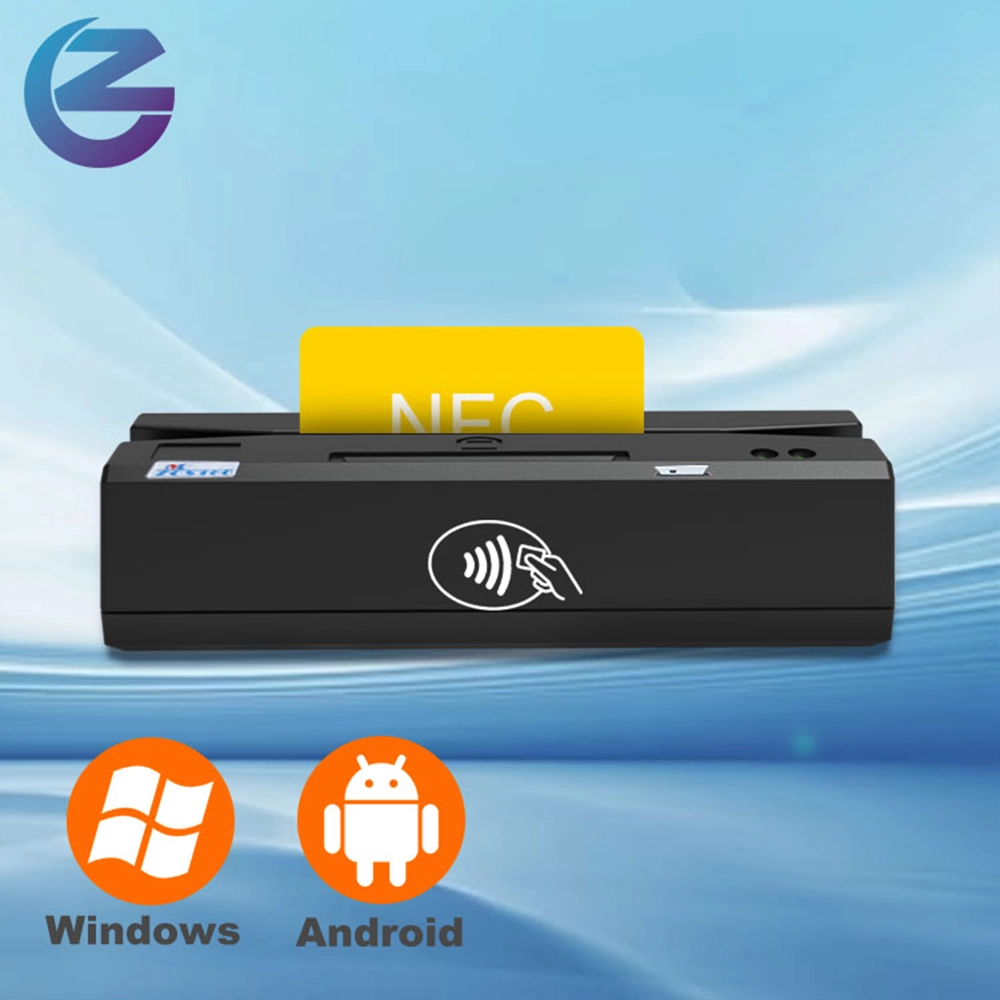

4 in 1 magnetic card reader+IC/NFC/PSAM card reader writer
Unique card slot design, draw card simple and lightweight, to reduce the magnetic stripe scratches, with long head life, support high and low speed card operation, a variety of recording format compatible function, the software can be upgraded accordingly.
1. Introduction
The ZCS160 is a high-performance, multi-functional card reader designed for magnetic stripe card reading and IC/NFC card reading & writing. Featuring an advanced 4-in-1 design, it supports magnetic cards, RFID cards, IC cards, and PSAM cards, making it an ideal solution for industries such as banking, retail, telecommunications, healthcare, and secure transactions.
With a USB interface, the ZCS160 easily connects to PCs, POS terminals, and other devices, enabling smooth data transmission and efficient card processing. Its unique card slot design minimizes magnetic stripe wear, ensuring longer head life and stable performance.
2. Feature
- Multi-Card Compatibility: Reads & writes a wide range of memory cards, supporting T=0 and T=1 CPU card communication protocols.
- PSAM Card Support: Enables secure operations with SAM card compatibility, ideal for encrypted transactions.
- Seamless Connectivity: Uses a USB interface for effortless plug-and-play operation without driver installation.
- Real-Time Data Output: Built-in green LED indicator and buzzer notify users of successful card reading.
- Compact & Stylish Design: Lightweight, slim, and ergonomic, making it a practical choice for both stationary and mobile applications.
- Comprehensive Software Development Kit (SDK): Supports multiple programming languages, including C#, C++, Delphi, Java, VB.NET, and more.
| Communications | USB2.0、USB-OTG（Android 3.1 above） |
| Operating system | Win10,Win8,Win7,Win XP(SDK avaliable), Linux |
| Electricity | |
| Power | Micro USB 5V |
| Current | 45-120 mA |
| Environment | |
| Operation Temperature | -20℃ ~ 55 ℃ |
| Operation Humidity | 10%~90%( relative humidity) |
| Storage Temperature | -30℃~70℃ |
| Storage Humidity | 10%~90%( relative humidity) |
| Magnetic card(Read only) | |
| Read card | Track 1/2/3,optional |
| Swipe | Bi-direction |
| Head life | Approx 500,000 times |
| Parity and LRC checking | Built-in buzzer, error LED indicator |
| Cards supported | ISO 7811,AMMVA,CADMV |
| IC Card(Read and Write) | |
| Cards supported | AT24C01A/24C02/24C04/24C08/24C16/AT24C64，SLE4432/4442，SLE4418/4428， |
| ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0) | |
| RFID card(Read and Write) | |
| Operating Frequency | 13.56 MHz±7KHz |
| Smart Card Interface | ISO14443-A, Mifare |
| Sensing Distance | About 0-5cm |
| Buzzer | Programmable ON or OFF |
| Card support | ISO14443A,MifareOneS50,MifareOneS70,MF3 DESFIRE, Ultralight、 ISO14443B 、SONY felica |
| PSAM card (Read and Write) | |
| Head life | Approx 200,000 times |
| Cards supported | ISO 7816-3, (T=1, T=0), 9600 bps |
| Appearance | |
| Size and weight | 160mm(L) ×45mm(W) × 45mm(H), 180g |
| Material | ABS |
| Color | Black |
