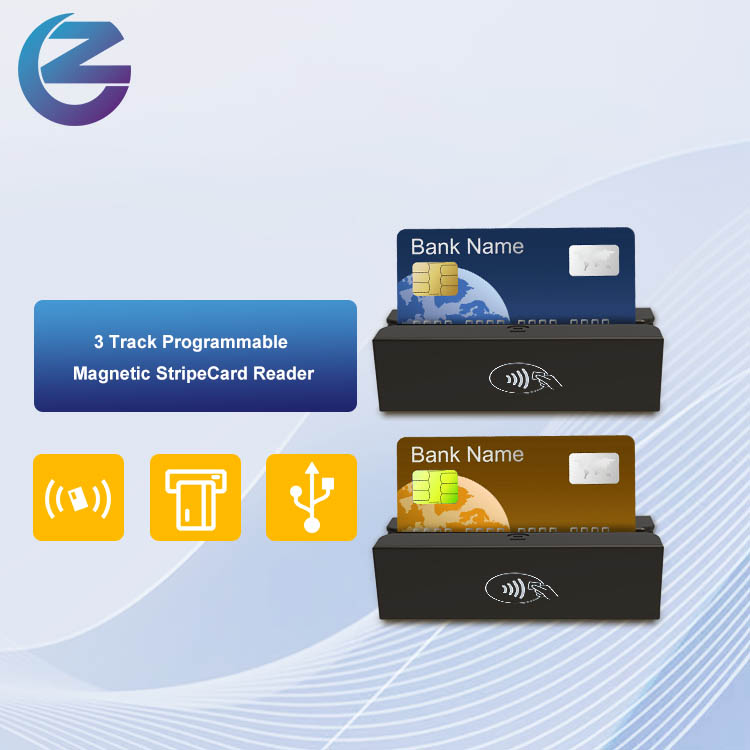

2 in 1 Magnetic Stripe Reader + 13.56MHZ Contactless RFID Card Reader Writer
1. Introduction
Magnetic Stripe and RFID Card Combo, it is a multi-functional reader to help you read magnetic stripe cards and read/write RFID cards.It is good for varieties of applications, such as reading credit cards, health card, the RFID cards, Advance: no need to purchase more than one reader, only theZCS100-RFcan help you to save money, Equipped with a multitude of configurations, it can be easily customized to your needs and applications.
2. Feature
Magnetic reader and RFID card reader and writer function
Triple track reading (selectable tracks)
ISO、AAMVA、CADMV compatible
Bi-directional swipe reading
13.56 MHz mifare RFID reader/writer
Built-in data encryption option: Triple DES, advanced security features and masked data
Good read confirmation by beep sounds
LED provide operational status
Provide a full range of dynamic library functions, provide a comprehensive description of the development, points, example, and source code.(includes c#2003,c++builder,Adelphi,Powerbuilder,VB.net2003,VB6.0,java)
ZCS100-RF 2 in 1 Magnetic Stripe Card Reader
| Power | Micro USB 5V |
| Current | 45~120mA |
| Interconnection | |
| Interface | USB2.0、USB-OTG(Android 3.1 above) |
| Mechanical | |
| Body | ABS |
| Dimensions | 100mm(L)X34mm(W)X30mm(H) |
| Weight | 90g |
| Color | Black |
| Environment | |
| Operation temp | -20℃ ~ 55 ℃ |
| Operation humidity | 10%~90% relative humidity |
| Storage temp | -30℃~70℃ |
| Storage humidity | 10%~90% relative humidity |
| Magnetic card | |
| Selectable tracks | yes |
| Read card | 1/2/3 track optional |
| Swipe | Bi-direction |
| Head life | Approx 500,000 times |
| Parity and LRC checking | Built-in buzzer,error LED indicator |
| Cards supported | ISO 7811,AMMVA,CADMV |
| RFID card | |
| Operating Frequency | 13.56 MHz±7KHz |
| Smart Card Interface | ISO14443-A, Mifare |
| Sensing Distance | 0-5cm |
| Programmable sound | ON or OFF |
| Cards supported | SO 14443A,Mifare One S50,Mifare One S70,Mifare One Mini,Mifare Ultra Light,Desfire,Mifare Plus |
| Operation | |
| Operating system | Win10,Win8,Win7,Win XP(SDK avaliable), Linux |
| Certifications | CE, FCC, UL, ROHS |
