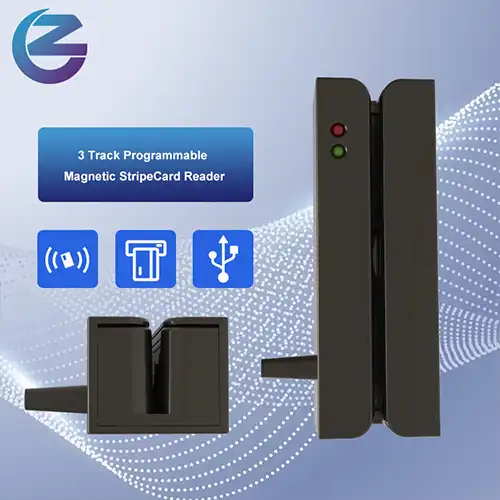

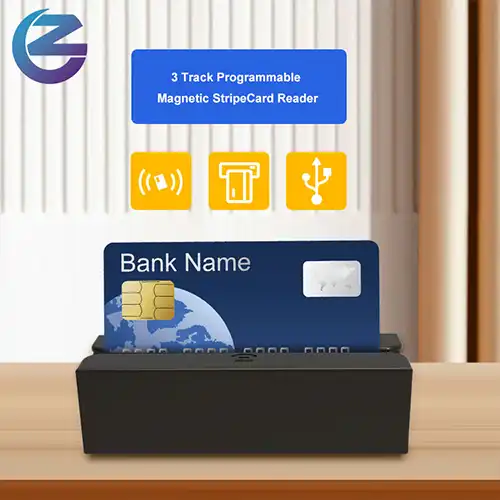

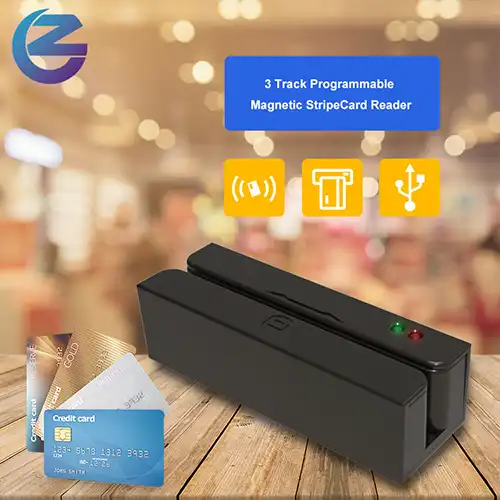

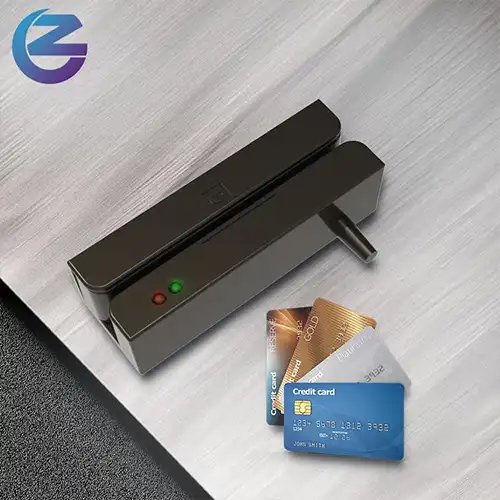

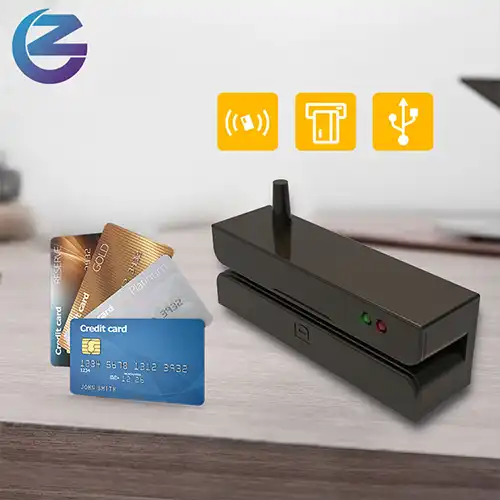

2 in 1 Magnetic Stripe Reader + Contact IC Chip Card Reader Writer
1. Introduction
ZCS100-IC is programmable magnetic card, IC card reader combo, widely used in industrial, commercial, telecommunications, taxation, banking, insurance, medical and a variety of fees, stored value, query management system. The user can according to actual needs, select the data format and intelligent interface by programming or configuration.
2. Feature
thin, light and beautiful, practical
POST, no additional power supply
can read a variety of memory cards and supports T = 0, T = 1 protocol CPU card
via USB interface to communicate with the computer, support android platform
simple operation, easy connection, plug and play
Certification: CE, ROHS, FCC
supports a variety of systems: Windows XP, Windows visa, Windows7, Linux, etc.
a variety of SDK sample program
| Model | ZCS100-IC |
| Interface | Micro USB(5V) |
| Communications | USB,mini USB，Serial |
| Operating system | Win10,Win8,Win7,Win XP(SDK avaliable), Linux |
| Temperature | -20°∼ 60 °C（storage） |
| -20°∼ 60 °C（operation） | |
| Humidity | 90% non- condensing(for operation) |
| Maximum power consumption | 100 mW |
| Magnetic interference resistance | 19 Oersted |
| Vibration resistance | Amplitude 0.35mm,Frequency 10-55Hz,Three axis directions sweep vibration |
| Insulation Resistance | Hot and humid circumstances(40°，95%)Insulation resistance should not be less than 5 mΩ |
| Dimensions | 100mm(L) ×34mm(W) × 30mm(H) |
| Color | Black |
| Error rate | <0.5% |
| Weight | 85g |
| IC card | |
| Operating Life | > 100,000times |
| Card thickness | About 0.75mm |
| Insert IC card Current | 20mA |
| Operate IC card | 50mA |
| Working current | 25mA |
| Card type | AT24C01A/24C02/24C04/24C08/24C16/AT24C64，SLE4432/4442，SLE4418/4428， |
| ISSI 24C01A/16,ISO7816-(1-4) (T=1, T=0) | |
| Magnetic Stripe | |
| Card type | ISO 7811,AMMVA,CADMV and other format |
| Swipe speed | 3 ~ 60 in/s |
| Operating Life | >500,000 |
| Track position | Track1/2/3 |
| Card thickness | 0.76~1.2mm |
| Working current | 7mA |
