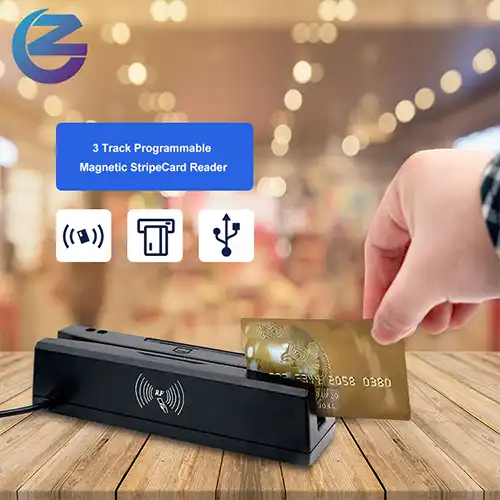

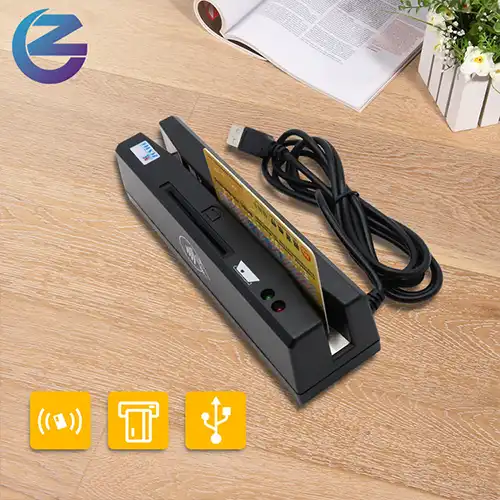

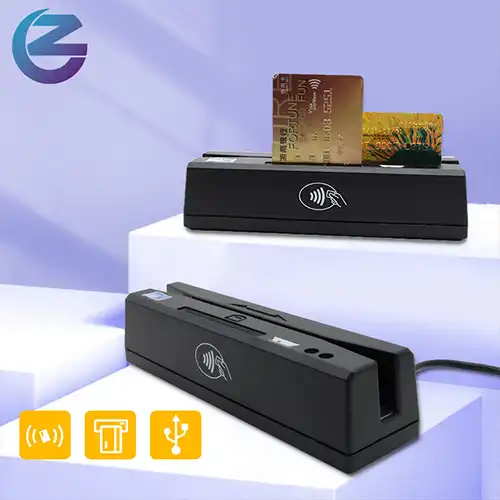

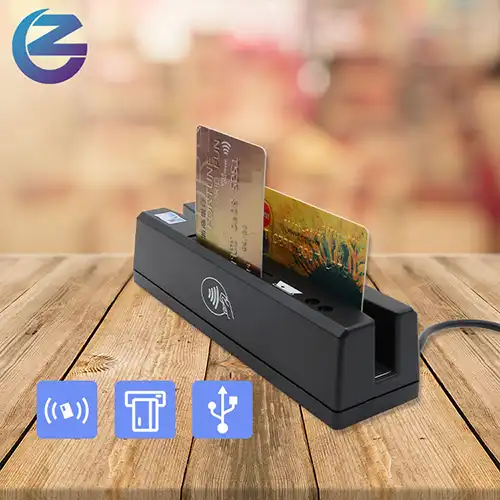

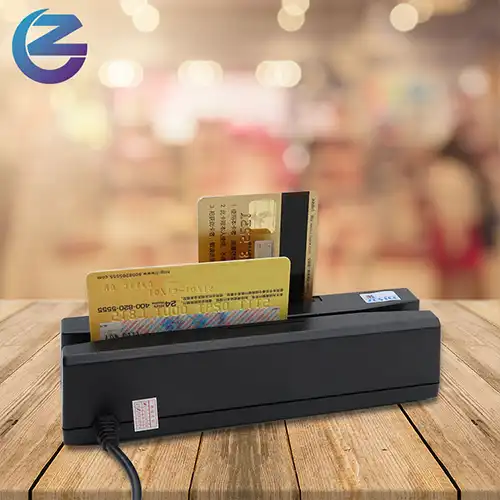

2 in 1 Magnetic Stripe Reader + 13.56MHZ Contactless RFID Card Reader Writer
1. Introduction
Magnetic Stripe and RFID Card Combo, it is a multi-functional reader to help you read magnetic stripe cards and read/write RFID cards.It is good for varieties of applications, such as reading credit cards, health card, the RFID cards, Advance: no need to purchase more than one reader, only theZCS100-RFcan help you to save money, Equipped with a multitude of configurations, it can be easily customized to your needs and applications.
2. Feature
l Magnetic reader and RFID card reader and writer function
l Triple track reading (selectable tracks)
l ISO、AAMVA、CADMV compatible
l Bi-directional swipe reading
l 13.56 MHz mifare RFID reader/writer
l Built-in data encryption option: Triple DES, advanced security features and masked data
l Good read confirmation by beep sounds
l LED provide operational status
l Provide a full range of dynamic library functions, provide a comprehensive description of the development, points, example, and source code.(includes c#2003,c++builder,Adelphi,Powerbuilder,VB.net2003,VB6.0,java)
ZCS100-RF 2 in 1 Magnetic Stripe Card Reader
| Power | Micro USB 5V |
| Current | 45~120mA |
| Interconnection | |
| Interface | USB2.0、USB-OTG(Android 3.1 above) |
| Mechanical | |
| Body | ABS |
| Dimensions | 100mm(L)X34mm(W)X30mm(H) |
| Weight | 90g |
| Color | Black |
| Environment | |
| Operation temp | -20℃ ~ 55 ℃ |
| Operation humidity | 10%~90% relative humidity |
| Storage temp | -30℃~70℃ |
| Storage humidity | 10%~90% relative humidity |
| Magnetic card | |
| Selectable tracks | yes |
| Read card | 1/2/3 track optional |
| Swipe | Bi-direction |
| Head life | Approx 500,000 times |
| Parity and LRC checking | Built-in buzzer,error LED indicator |
| Cards supported | ISO 7811,AMMVA,CADMV |
| RFID card | |
| Operating Frequency | 13.56 MHz±7KHz |
| Smart Card Interface | ISO14443-A, Mifare |
| Sensing Distance | 0-5cm |
| Programmable sound | ON or OFF |
| Cards supported | SO 14443A,Mifare One S50,Mifare One S70,Mifare One Mini,Mifare Ultra Light,Desfire,Mifare Plus |
| Operation | |
| Operating system | Win10,Win8,Win7,Win XP(SDK avaliable), Linux |
| Certifications | CE, FCC, UL, ROHS |
